How Pierre Shale Soil Causes Pipe Failures in Castle Rock Foundations

What Pierre Shale is and why it moves

Pierre Shale is a Late Cretaceous-era marine sedimentary rock formation deposited roughly 70 to 80 million years ago when a shallow inland sea covered the central United States. Along the Front Range, this formation is present in a band that runs through much of Douglas County and underlies the Castle Rock area. Pierre Shale contains high concentrations of smectite clay minerals, particularly montmorillonite, which have an extraordinary capacity for water absorption. When smectite clay absorbs water, it swells. When it dries, it shrinks. The volumetric change between fully wet and fully dry smectite clay can exceed 30 percent.

In practice, the soil beneath a Castle Rock foundation does not swing between fully saturated and completely desiccated in normal seasonal patterns. But it does undergo meaningful moisture variation from summer dry periods to spring snowmelt cycles, from irrigation season to winter dormancy, and from drought years to wet years. Each cycle produces a small but measurable vertical and horizontal movement in the soil beneath and around buried pipes.

How soil movement stresses buried supply lines

A copper supply line embedded in or directly below a concrete foundation slab is stressed at its fittings and solder joints by the cumulative effect of slab movement. The concrete slab distributes some load but also concentrates stress at points where the pipe changes direction or where the pipe diameter transitions at a fitting. When the soil beneath the slab lifts during a wet period and settles during a dry period, the pipe joints experience a slight bending or shear stress at each cycle.

Over 20 to 25 years, the cumulative effect on solder joints that are also being attacked chemically by Castle Rock's moderately hard water is a meaningful contribution to the joint failure rate. The soil movement alone would not produce failures in young copper pipe, and the hard water alone might not produce failures in pipe that is not also being stressed by soil movement. Together, the two processes accelerate each other and produce the slab leak rates that Castle Rock's 1990s-era neighborhoods now experience.

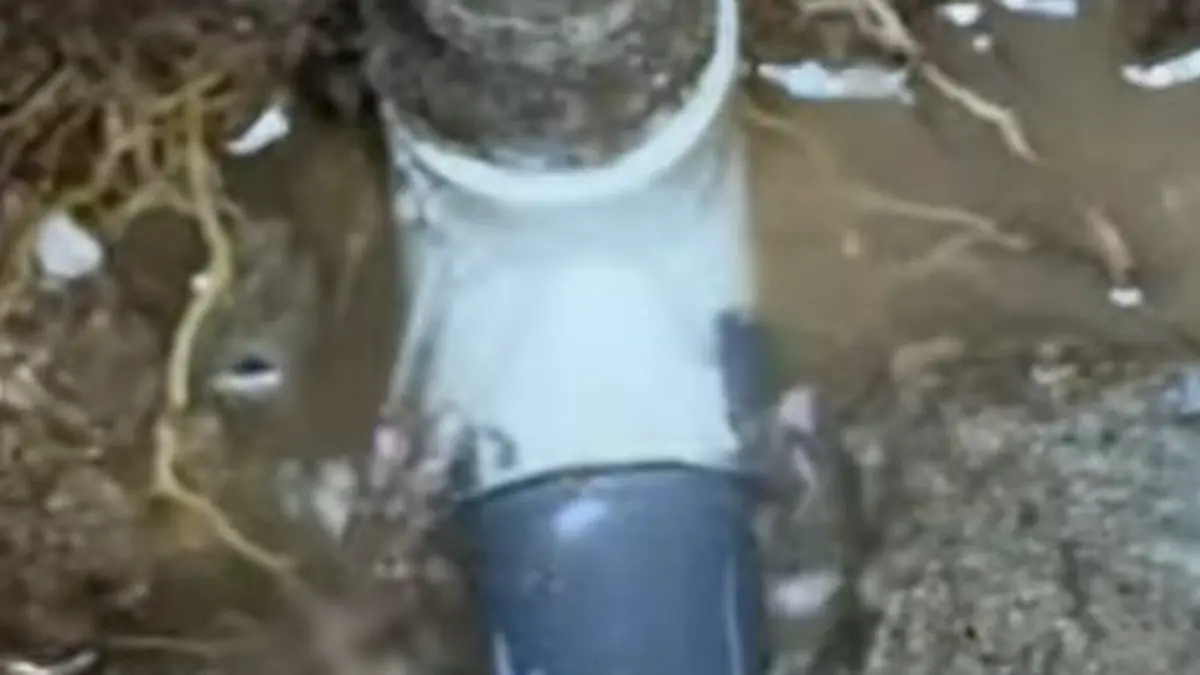

How soil movement affects buried sewer lines

Sewer laterals run from the house foundation to the municipal main in the street, typically at a depth of 4 to 8 feet in Castle Rock. The expansion and contraction of Pierre Shale soil across that burial depth creates slow differential movement between the pipe joints. In clay pipe sections from older Castle Rock properties, the mortar joints between sections are the first to open. In PVC sewer lines from the 1990s and later, the rubber-gasketed push-fit joints are more tolerant of movement, but severe soil movement can still produce joint separation or offset at fittings.

Downtown Castle Rock and the oldest neighborhoods have clay tile sewer lines that have been subject to soil movement for 50 to 80 years. These sections show the accumulated effect: joint separation, grade loss, and root intrusion at opened joints are the expected findings in camera inspections of that infrastructure. The 1990s-era PVC lateral sections in The Meadows and Castlewood Ranch are much younger, but the underlying soil movement continues regardless of pipe vintage.

How soil movement affects water service lines

Water service lines run from the street meter to the foundation, typically at a burial depth similar to the sewer lateral. The soil movement forces on a service line are similar in character but affect the pipe at different points than sewer lines because service lines run under pressure rather than by gravity. A small joint separation in a service line is a pressurized leak rather than a gravity-flow compromise; it produces immediate water loss. The service line failure pattern in Castle Rock's older neighborhoods, where original copper service connections from the 1970s and 1980s are now failing, is consistent with soil movement accumulated over decades combined with the same hard water corrosion that affects slab-embedded supply lines.
